    鋁合金一級傳動裝置

    Aluminum alloy single-stage drive device

    產品簡介

    本產品外殼為鋁合金材質、表面美觀大方。附有結合子，適應性強。采用蝸輪蝸桿傳動副，輸出扭矩大，自鎖可靠。適用于90°回轉的蝶閥、球閥、旋塞閥、調節閥等閥門的控制。

    The shell of this product is made of aluminum alloy with beautiful surface. With binders, strong adaptability. Using worm gear and worm transmission pair, output Torque is large, self-locking reliable. Suitable for 90 Rotary Butterfly Valve, ball valve, plug valve, control valve and other valves control.

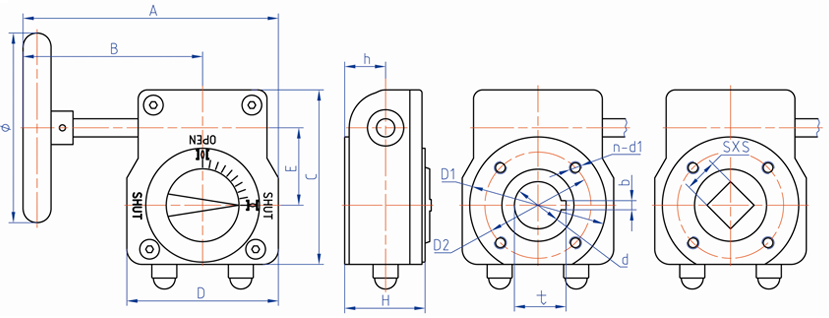

    外形尺寸表

    型號/ Model

    速比/Ratio

    輸出扭矩

    Output(N.m)

    輸入扭矩

    Input(N.m)

    手輪直徑

    Hand-wheel dia(mm)

    A

    B

    C

    D

    E

    h

    H

    Φ

    重量/WT(kg)

    3DⅢ-10

    40:1

    150

    18.5

    100

    139

    99

    98

    80

    42.5

    26

    48

    120

    1.45

    3DⅢ-15

    37:1

    250

    34

    120

    165

    115

    115

    100

    50

    27

    54

    140

    1.9

    3DⅢ-50

    45:1

    750

    83

    300

    293

    220

    155

    146

    60

    38

    71

    300

    5.2

    3DⅢ-120

    40:1

    1200

    150

    400

    410

    323

    191

    175

    80

    39.5

    80

    400

    9.2

    連接尺寸表

    型號/ Model

    適用閥門口徑

    Available opening of butterfly valve

    d

    b

    t

    S×S

    D1

    D2

    n-d1

    位置/Position

    (+   ×)

    3DⅢ-10

    2＂- 4＂

    15.9

    5

    18.2


    80

    50

    70

    4-M6

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    3DⅢ-15

    5＂- 6＂

    19.05

    5

    21.35


    89

    70

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    -

    -

    -

    14×14

    -

    -

    -

    17×17

    3DⅢ-50

    8＂- 10＂

    28.6

    8

    31.9


    140

    102

    4-M10

    ×

    -

    -

    -

    19×19

    -

    -

    -

    22×22

    3DⅢ-120

    12＂- 14＂

    31.8

    8

    35.1


    175

    140

    4-M16

    ×

    -

    -

    -

    22×22

    -

    -

    -

    27×27

    首頁>產品中心

    鋁合金一級傳動裝置

    Aluminum alloy single-stage drive device

    產品簡介

    本產品外殼為鋁合金材質、表面美觀大方。附有結合子，適應性強。采用蝸輪蝸桿傳動副，輸出扭矩大，自鎖可靠。適用于90°回轉的蝶閥、球閥、旋塞閥、調節閥等閥門的控制。

    The shell of this product is made of aluminum alloy with beautiful surface. With binders, strong adaptability. Using worm gear and worm transmission pair, output Torque is large, self-locking reliable. Suitable for 90 Rotary Butterfly Valve, ball valve, plug valve, control valve and other valves control.


    外形尺寸表

    型號/ Model

    速比/Ratio

    輸出扭矩

    Output(N.m)

    輸入扭矩

    Input(N.m)

    手輪直徑

    Hand-wheel dia(mm)

    A

    B

    C

    D

    E

    h

    H

    Φ

    重量/WT(kg)

    3DⅢ-10

    40:1

    150

    18.5

    100

    139

    99

    98

    80

    42.5

    26

    48

    120

    1.45

    3DⅢ-15

    37:1

    250

    34

    120

    165

    115

    115

    100

    50

    27

    54

    140

    1.9

    3DⅢ-50

    45:1

    750

    83

    300

    293

    220

    155

    146

    60

    38

    71

    300

    5.2

    3DⅢ-120

    40:1

    1200

    150

    400

    410

    323

    191

    175

    80

    39.5

    80

    400

    9.2

    連接尺寸表

    型號/ Model

    適用閥門口徑

    Available opening of butterfly valve

    d

    b

    t

    S×S

    D1

    D2

    n-d1

    位置/Position

    (+   ×)

    3DⅢ-10

    2＂- 4＂

    15.9

    5

    18.2


    80

    50

    70

    4-M6

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    3DⅢ-15

    5＂- 6＂

    19.05

    5

    21.35


    89

    70

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    -

    -

    -

    14×14

    -

    -

    -

    17×17

    3DⅢ-50

    8＂- 10＂

    28.6

    8

    31.9


    140

    102

    4-M10

    ×

    -

    -

    -

    19×19

    -

    -

    -

    22×22

    3DⅢ-120

    12＂- 14＂

    31.8

    8

    35.1


    175

    140

    4-M16

    ×

    -

    -

    -

    22×22

    -

    -

    -

    27×27

    產品簡介

    本產品外殼為鋁合金材質、表面美觀大方。附有結合子，適應性強。采用蝸輪蝸桿傳動副，輸出扭矩大，自鎖可靠。適用于90°回轉的蝶閥、球閥、旋塞閥、調節閥等閥門的控制。

    The shell of this product is made of aluminum alloy with beautiful surface. With binders, strong adaptability. Using worm gear and worm transmission pair, output Torque is large, self-locking reliable. Suitable for 90 Rotary Butterfly Valve, ball valve, plug valve, control valve and other valves control.


    外形尺寸表

    型號/ Model

    速比/Ratio

    輸出扭矩

    Output(N.m)

    輸入扭矩

    Input(N.m)

    手輪直徑

    Hand-wheel dia(mm)

    A

    B

    C

    D

    E

    h

    H

    Φ

    重量/WT(kg)

    3DⅢ-10

    40:1

    150

    18.5

    100

    139

    99

    98

    80

    42.5

    26

    48

    120

    1.45

    3DⅢ-15

    37:1

    250

    34

    120

    165

    115

    115

    100

    50

    27

    54

    140

    1.9

    3DⅢ-50

    45:1

    750

    83

    300

    293

    220

    155

    146

    60

    38

    71

    300

    5.2

    3DⅢ-120

    40:1

    1200

    150

    400

    410

    323

    191

    175

    80

    39.5

    80

    400

    9.2

    連接尺寸表

    型號/ Model

    適用閥門口徑

    Available opening of butterfly valve

    d

    b

    t

    S×S

    D1

    D2

    n-d1

    位置/Position

    (+   ×)

    3DⅢ-10

    2＂- 4＂

    15.9

    5

    18.2


    80

    50

    70

    4-M6

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    3DⅢ-15

    5＂- 6＂

    19.05

    5

    21.35


    89

    70

    4-M8

    ×

    -

    -

    -

    9×9

    -

    -

    -

    11×11

    -

    -

    -

    14×14

    -

    -

    -

    17×17

    3DⅢ-50

    8＂- 10＂

    28.6

    8

    31.9


    140

    102

    4-M10

    ×

    -

    -

    -

    19×19

    -

    -

    -

    22×22

    3DⅢ-120

    12＂- 14＂

    31.8

    8

    35.1


    175

    140

    4-M16

    ×

    -

    -

    -

    22×22

    -

    -

    -

    27×27
